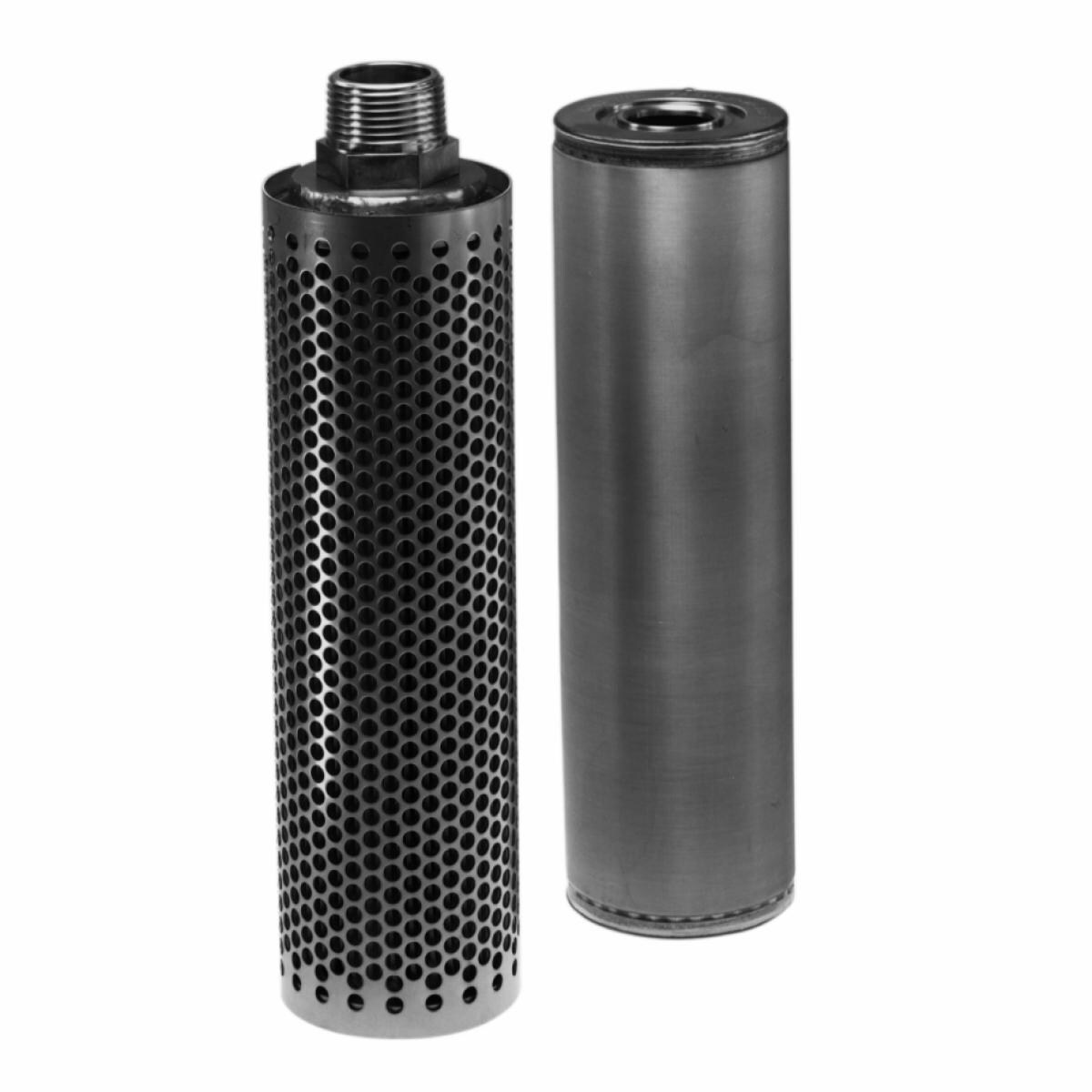

3M™ CUNO™ Metal Screen Filter Cartridges are made from stainless steel wire cloth for controlled particle removal efficiency. Our cartridges are fitted with a screen and a perforated internal support cylinder attached to end caps equipped with replaceable gaskets.
3M™ CUNO™ Metal Screen Filter Cartridges deliver effective, consistent filtration of fluids where either high viscosity, high temperature or corrosive properties necessitate a stainless steel construction.
Our cartridges are manufactured from 316 stainless steel and fitted with a screen and a perforated internal support cylinder. A variety of end-cap fittings are available to provide compatibility with a wide range of application needs. For ease of maintenance they can be cleaned using a variety of methods, including back flushing, chemical cleaning and ultrasonic cleaning. Standard cartridges have a plain, unpleated media.
They’re available in a range of 14 filtration grades that cover from 3 microns absolute up to 1,000 microns nominal. These are available in Double Open Ended (DOE) and heights 1 and 2, configuration with Nitrile of PTFE Flat Gasket equipped end caps, also in heights 1 and 2.
The standard range is readily extendable to include further options such as heights 3 and 4, and Single Open Ended configurations (with Type 222 or 226 end caps) and a variety of replaceable gasket materials. A threaded NPT option is also available.
3M SPSD Hardware team has extensive experience designing and supplying special metal screen cartridges. These can include pleated media for greater surface area and a perforated, protective outer sheet.
Please contact your local SPSD representative for further information.
